python画动态图(gif)

文章目录

  • python画动态图(gif)
    • 1.散点图gif
    • 2.三维散点图(gif)

python画动态图(gif)

1.散点图gif

## 不加这行代码会导致无法显示
%matplotlib notebook
  • 1
  • 2
from matplotlib import pyplot as plt
import numpy as np
from matplotlib import animation
plt.rcParams['font.sans-serif'] = ['KaiTi']
plt.rcParams['axes.unicode_minus'] = False

fig = plt.figure(figsize = (14,6))
ax = fig.add_subplot(1, 2, 1)
ax1 = fig.add_subplot(1, 2, 2)
total = 40  ## 点总数,限于文件大小,只进行40次
# 产生数据
x, y = np.random.random((2, total))
z = (x**2 + y**2 >1)
# create the first plot
point, = ax.plot([], [] ,'r.')
point2, = ax.plot([], [] , 'b.')
line1, = ax1.plot([], [] , 'red')
ax1.set_xlim(left = 0, right = total)
# line, = ax.plot(x, y, z, label='parametric curve')
# ax.legend()
ax.set_xlim([0, 1])
ax.set_ylim([0, 1])
ax1.set_ylim(bottom =0, top = 5)
## 画园
x_ = np.array([i/1000 for i in range(1000+1)])
y_ = np.sqrt(1 - x_**2)
ax.plot(x_, y_,'black')
dataInx = []
dataIny = []

dataOutx = []
dataOuty = []
counts = []
piValues = []
# second option - move the point position at every frame

def update_point(n, x, y, z, point):
    if z[n]:
        dataOutx.append(x[n])
        dataOuty.append(y[n])
    else:
        dataInx.append(x[n])
        dataIny.append(y[n])
    point.set_data(dataInx, dataIny)
    point2.set_data(dataOutx, dataOuty)

    # point.set_array([255,0,0])
    count = len(dataInx) + len(dataOutx)
    piValue = len(dataInx)/(count) * 4
    counts.append(count)
    piValues.append(piValue)
    line1.set_data(counts, piValues)
    ax.set_title('蒙特卡洛模拟,次数{:0>3},圆周率估计值{:0<10}'.format(n,round(piValue, 10)),loc = 'center')
    ax1.set_title('蒙特卡洛模拟,次数{:0>3},圆周率估计值{:0<10}'.format(n,round(piValue, 10)),loc = 'center')
    return point

ani=animation.FuncAnimation(fig, update_point, total,fargs=(x, y, z, point))
ani.save('test1.gif',writer='pillow')
plt.show()

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60

在这里插入图片描述

2.三维散点图(gif)

from matplotlib import pyplot as plt
import numpy as np
from matplotlib import animation

fig = plt.figure()
ax = fig.add_subplot(1, 1, 1, projection='3d')

# 按照二维的思路,生成新数据,画三维图
x = np.random.random(100)
y = np.random.random(100)
z = np.random.random(100)
point, = ax.plot([], [], [], 'r.')
point2, =ax.plot([], [], [], '.')
ax.set_xlim([0, 1])
ax.set_ylim([0, 1])
ax.set_zlim([0, 1])
#
def update_point(n, x, y, z, point):
    point2.set_data([x[0:n], y[0:n]])
    point2.set_3d_properties(z[0:n], 'z')
    point.set_data([x[n], y[n]])
    point.set_3d_properties(z[n], 'z')
    # point.set_array([255,0,0])
    return point

ani=animation.FuncAnimation(fig, update_point, 99, fargs=(x, y, z, point))
ani.save('test.gif',writer='pillow')
plt.show()
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28

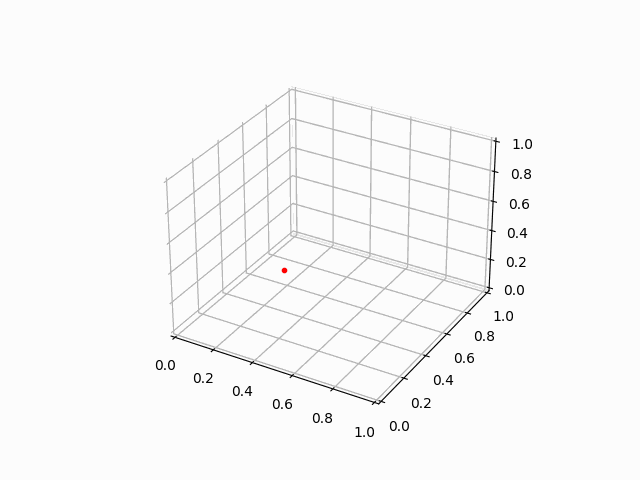

三维散点图
